Grand Design Imagine AIM Travel Trailer RVs For Sale

Previous
Next
1 of 24

These Grand Design Imagine AIM travel trailers expand the lineup with weights starting under 3,600 lbs. With their light weight construction, you can haul them with even more of today's SUV's.

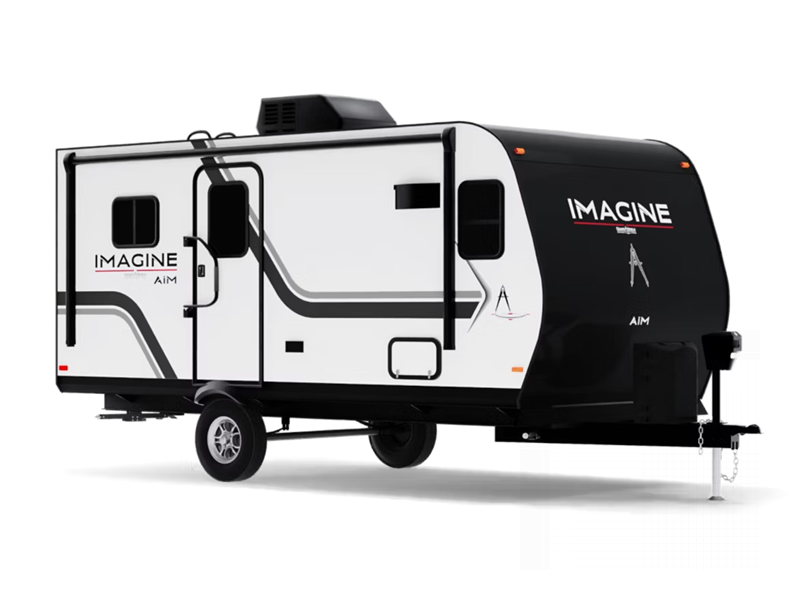

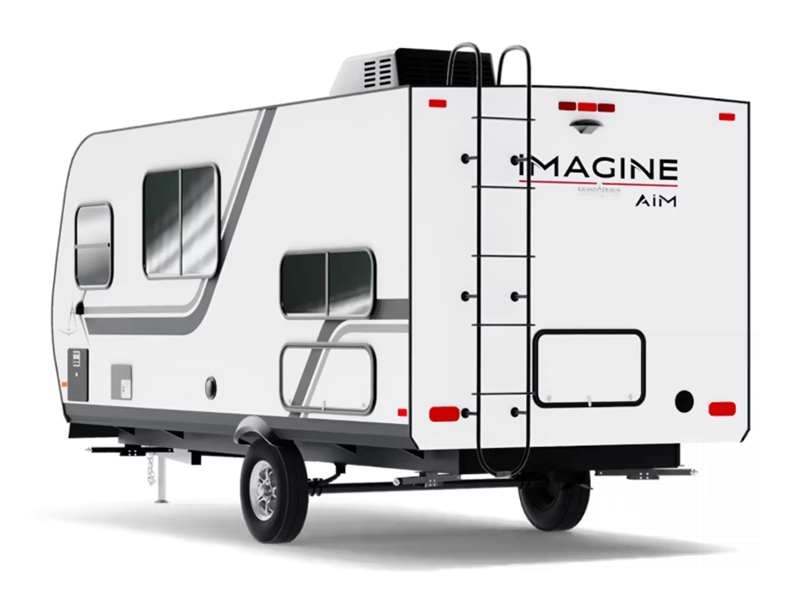

The gel coated fiberglass exterior is sure to turn heads at the campsite, and the exterior cooking griddle with a metal pullout drawer will come in handy. You will also love the four included packages, such as the AIM Solar Package with off-grid features and the AIM Four Seasons Protection Package to keep you comfortable all year long! There is even an optional AIM Enhancement Package for even more convenience!



Start imagining all that you can do with a Grand Design Imagine AIM travel trailer!

  • Imagine AIM 15BH

    Imagine AIM 15BH Floorplan Image

    Take a Virtual Tour

    Grand Design Imagine AIM 15BH travel trailer highlights: Flip-Top Bunk Front ... more about Imagine AIM 15BH

    Specifications

    Sleeps 4
    Length 19 ft 11 in
    Ext Width 8 ft
    Ext Height 10 ft 11 in
    Int Height 6 ft 6 in
    Hitch Weight 425 lbs
    GVWR 4795 lbs
    Dry Weight 3560 lbs
    Fresh Water Capacity 37 gals
    Grey Water Capacity 74 gals
    Black Water Capacity 37 gals
    Tire Size ST225/75R15LRE
    Furnace BTU 20000 btu
    Number Of Bunks 1
    Available Beds Queen
    Refrigerator Type 12V
    Refrigerator Size 6.2 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Type On Demand Tankless
    AC BTU 13500 btu
    TV Info LR High Def TV
    Awning Info 14' Adjustable Power with LED Lighting
    Axle Count 1
    Number of LP Tanks 2
    Shower Type Walk-In Shower
    Electrical Service 30 amp

    Similar Floorplans

  • Imagine AIM 14MS

    Imagine AIM 14MS Floorplan Image

    Take a Virtual Tour

    Grand Design Imagine AIM 14MS travel trailer highlights: Murphy Bed Slide Out ... more about Imagine AIM 14MS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Slides 1
    Length 17 ft 11 in
    Ext Width 8 ft
    Ext Height 10 ft 11 in
    Exterior Color 454
    GVWR 4600 lbs
    Dry Weight 3826 lbs
    Fresh Water Capacity 37 gals
    Grey Water Capacity 45 gals
    Black Water Capacity 37 gals
    Tire Size ST225/75R15LRE
    Furnace BTU 20000 btu
    Available Beds Murphy Bed
    Refrigerator Type 12V
    Refrigerator Size 6.2 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Type On Demand Tankless
    AC BTU 13500 btu
    TV Info LR High Def TV
    Awning Info 12' Adjustable Power with LED Lighting
    Axle Count 1
    Number of LP Tanks 2
    Shower Type Walk-In Shower
    Electrical Service 30 amp

    Similar Floorplans

  • Imagine AIM 15RB

    Imagine AIM 15RB Floorplan Image

    Take a Virtual Tour

    Grand Design Imagine AIM 15RB travel trailer highlights: Murphy Bed Booth ... more about Imagine AIM 15RB

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 3
    Length 19 ft 11 in
    Ext Width 8 ft
    Ext Height 10 ft 11 in
    Int Height 6 ft 6 in
    Hitch Weight 378 lbs
    GVWR 4795 lbs
    Dry Weight 3594 lbs
    Fresh Water Capacity 37 gals
    Grey Water Capacity 45 gals
    Black Water Capacity 37 gals
    Tire Size ST225/75R15LRE
    Furnace BTU 20000 btu
    Available Beds Murphy
    Refrigerator Type 12V
    Refrigerator Size 6.2 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Type On Demand Tankless
    AC BTU 13500 btu
    TV Info LR High Def TV
    Awning Info 12' 6" Adjustable Power with LED Lighting
    Axle Count 1
    Number of LP Tanks 2
    Shower Type Walk-In Shower
    Electrical Service 30 amp

    Similar Floorplans

  • Imagine AIM 16BL

    Imagine AIM 16BL Floorplan Image

    Take a Virtual Tour

    Grand Design Imagine AIM 16BL travel trailer highlights: Exterior Griddle ... more about Imagine AIM 16BL

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Length 19 ft 11 in
    Ext Width 8 ft
    Ext Height 10 ft 11 in
    Hitch Weight 406 lbs
    GVWR 5495 lbs
    Dry Weight 3976 lbs
    Fresh Water Capacity 37 gals
    Grey Water Capacity 45 gals
    Black Water Capacity 37 gals
    Tire Size ST225/75R15LRE
    Furnace BTU 20000 btu
    Number Of Bunks 2
    Available Beds Murphy
    Refrigerator Type 12V
    Refrigerator Size 6.2 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Type On Demand Tankless
    AC BTU 13500 btu
    TV Info LR High Def TV
    Awning Info 12' Adjustable Power with LED Lighting
    Axle Count 1
    Number of LP Tanks 2
    Shower Type Walk-In Shower
    Electrical Service 30 amp

    Similar Floorplans

  • Imagine AIM 16ML

    Imagine AIM 16ML Floorplan Image

    Take a Virtual Tour

    Grand Design Imagine AIM 16ML travel trailer highlights: Full Rear Bathroom ... more about Imagine AIM 16ML

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Length 20 ft
    Ext Width 8 ft
    Ext Height 10 ft 11 in
    Int Height 6 ft 6 in
    Hitch Weight 412 lbs
    GVWR 4795 lbs
    Dry Weight 3768 lbs
    Fresh Water Capacity 37 gals
    Grey Water Capacity 45 gals
    Black Water Capacity 37 gals
    Tire Size ST225/75R15LRE
    Furnace BTU 20000 btu
    Available Beds Queen
    Refrigerator Type 12V
    Refrigerator Size 6.2 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Type On Demand Tankless
    AC BTU 13500 btu
    TV Info LR High Def TV
    Awning Info 12' 6" Adjustable Power with LED Lighting
    Axle Count 1
    Number of LP Tanks 2
    Shower Type Walk-In Shower
    Electrical Service 30 amp

    Similar Floorplans

  • Imagine AIM 18BH

    Imagine AIM 18BH Floorplan Image

    Take a Virtual Tour

    Grand Design Imagine AIM 18BH travel trailer highlights: Bar Tabletop Dinette ... more about Imagine AIM 18BH

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Length 21 ft 11 in
    Ext Width 8 ft
    Ext Height 10 ft 11 in
    Int Height 6 ft 6 in
    Hitch Weight 466 lbs
    GVWR 5495 lbs
    Dry Weight 4064 lbs
    Fresh Water Capacity 37 gals
    Grey Water Capacity 45 gals
    Black Water Capacity 37 gals
    Tire Size ST225/75R15LRE
    Furnace BTU 20000 btu
    Number Of Bunks 2
    Available Beds Murphy
    Refrigerator Type 12V
    Refrigerator Size 6.2 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Type On Demand Tankless
    AC BTU 13500 btu
    TV Info LR High Def TV
    Awning Info 15' Adjustable Power with LED Lights
    Axle Count 1
    Number of LP Tanks 2
    Shower Type Walk-In Shower
    Electrical Service 30 amp

    Similar Floorplans

Imagine AIM Features:

Standard Features



Exterior

  • Backup Camera Prep
  • 80% Tint Radius Safety Glass Windows
  • 20# LP Bottles (2) w/Level Gauges
  • Radius Entry Door
  • High-Capacity Water Pump
  • Battery Kill Switch (Pass Thru)
  • Extra Large 2” Fresh Water Drain Valve
  • Oversized Tank Capacities
  • Dedicated Sewer Hose Carrier
  • Universal Docking Station
  • Spare Tire and Carrier
  • Front Rock Guard
  • Accessory Hitch Receiver
  • Exterior Cooking Griddle w/ Metal Pullout Drawer
  • Power Tongue Jack
  • Tuff-Ply Pass Thru Flooring

Construction

  • Gel Coated Fiberglass Exterior
  • One-Piece Roof Membrane with Limited Lifetime Warranty
  • Easy Access Low Point Drain Valves
  • Friction Hinge Entry Door
  • Magnetic Storage Door Catches
  • Laminated Aluminum Framed Rear Wall (R-7)
  • Laminated Aluminum Framed Side Walls (R-7)
  • Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-7)
  • Laminated Aluminum Framed Main Floor (R-30)
  • 5" Radius Wood Framed Roof (R-40)
  • Heated and Enclosed Underbelly with Suspended Tanks
  • Designated Heat Duct to Subfloor
  • High Density Roof Insulation with Attic Vent
  • Moisture Barrier Floor Enclosure
  • Double Insulated Roof and Front Wall
  • Heated and Enclosed Dump Valves

Running Gear

  • Aluminum Rims

Frame & Chassis

  • Power Tongue Jack

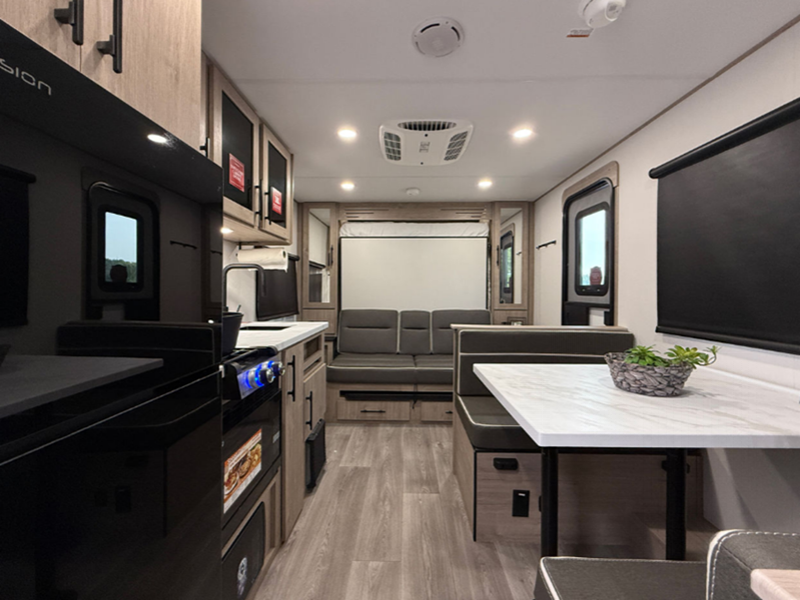

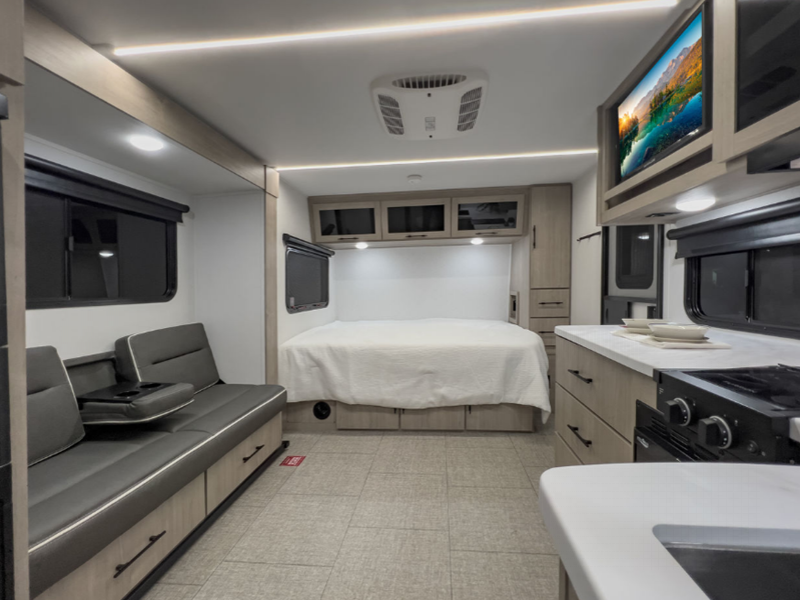

Interior

  • Solid Drawer Fronts
  • Solid Core Cabinet Stiles
  • Pre-Drilled and Screwed Face Frames

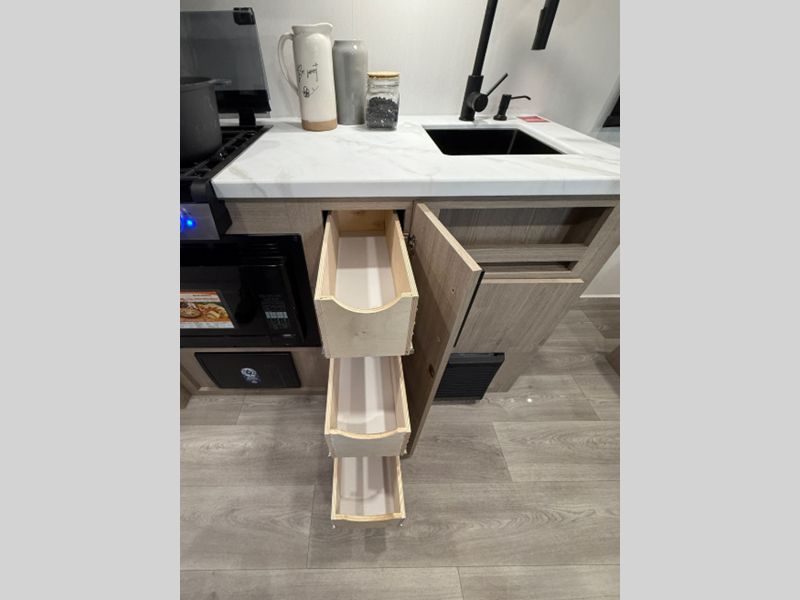

  • Ball Bearing Full Extension Drawer Glides
  • Large Panoramic Window
  • 78" Interior Ceiling

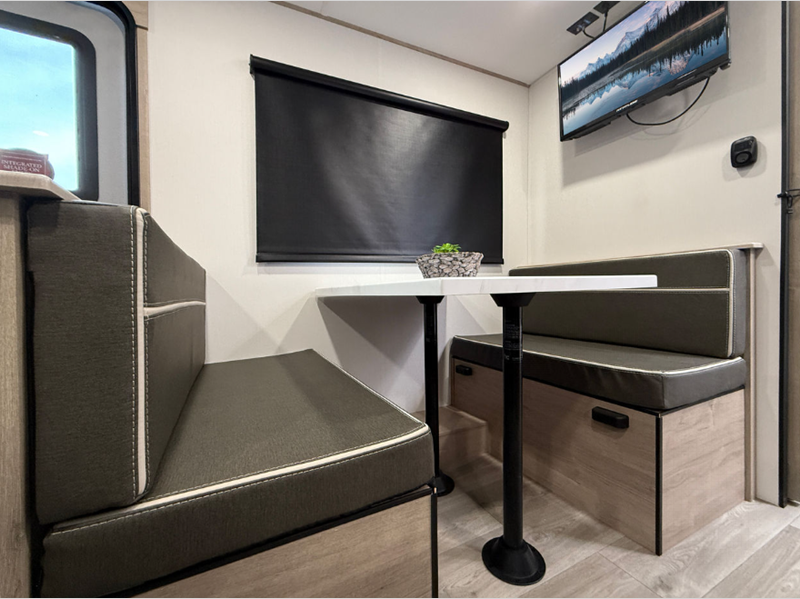

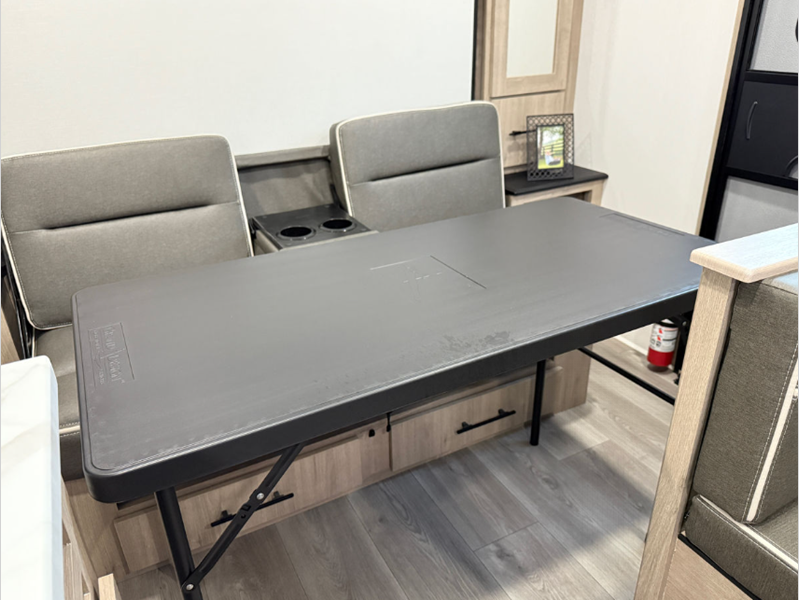

  • Telescoping Dinette Table
  • Residential Cabinetry
  • Premium Window Treatments
  • Wireless Pop-Up Charger w/2 USB Outlets

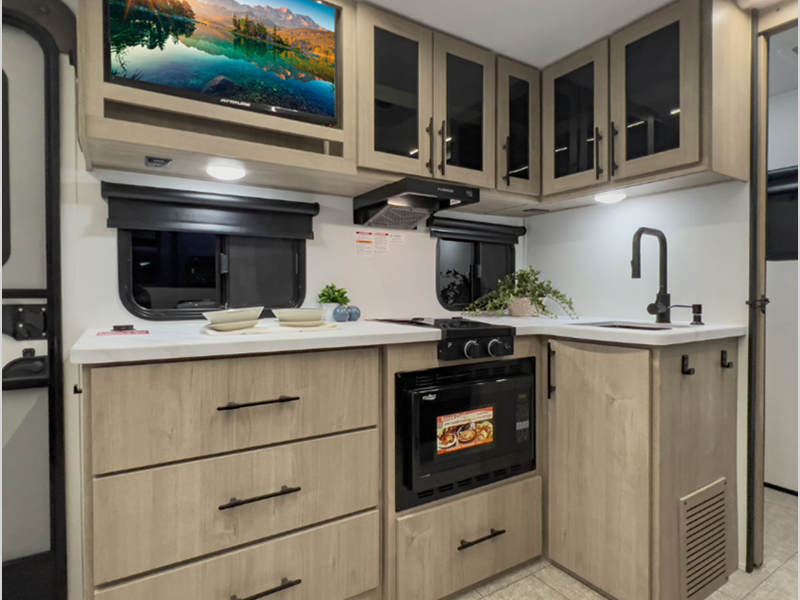

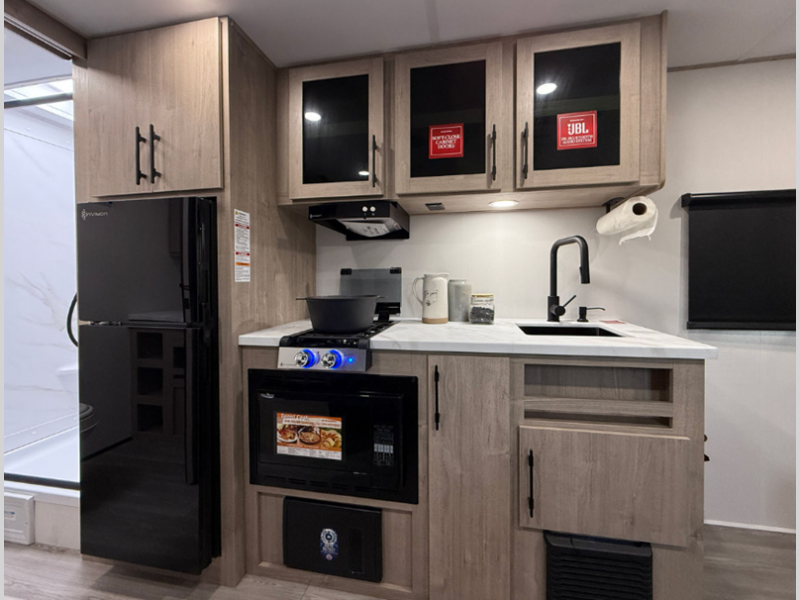

Kitchen

  • Residential Countertops
  • 2-Burner Cook Top
  • Stainless Steel Sink

Electrical

  • 6" Coiled Break-away Cable
  • Adjustable Power Awning w/ LED Lights
  • LED Interior Lighting
  • 30 AMP Service
  • Detachable Power Cord
  • Motion Sensor Entry Lighting (LED)
  • Compass Connect
  • Tire Linc TPMS Prep
  • 200W Roof Mounted Solar Panel
  • Roof Mounted Quick Connect Plugs
  • 30 AMP Charge Controller

HVAC

  • Cabinet Mounted Heat Ducts
  • High Efficiency AC System
  • High Capacity Furnace
  • Residential (Ductless) Heating System Throughout

Plumbing

  • On-Demand Tankless Water Heater
  • Black Tank Flush
  • Oversized Holding Tanks

Bedroom

  • Residential Bedspread

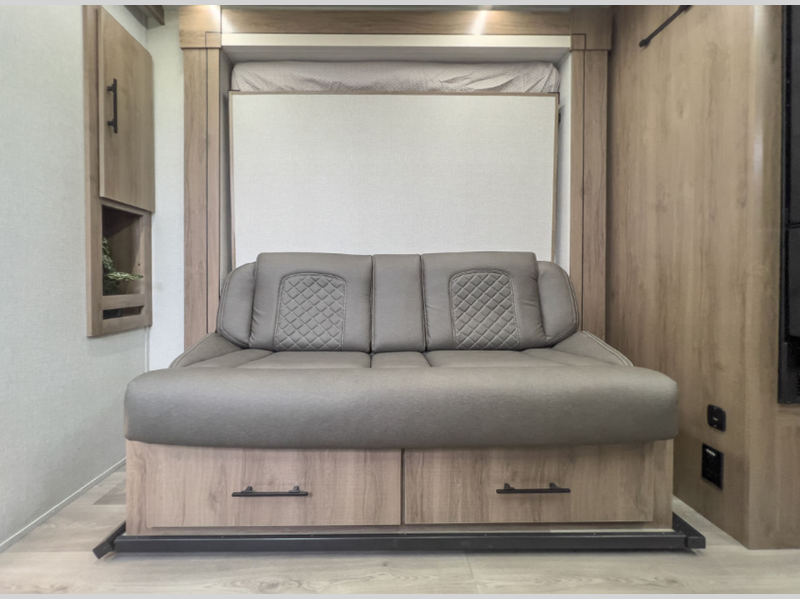

  • Queen Murphy Bed w/ Storage Drawers (14MS, 15RB, 16BL, 18BH)
  • Master Suite with Queen Bed (15BH & 16ML)

Bathroom

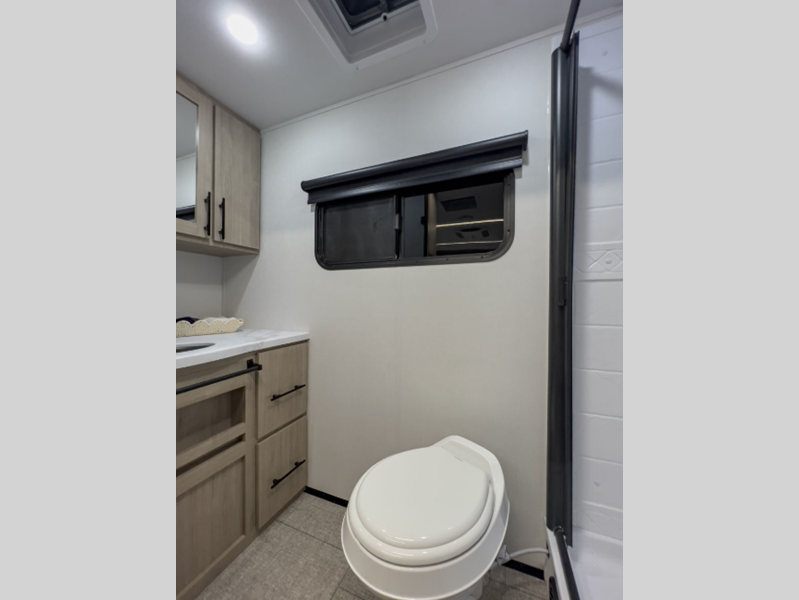

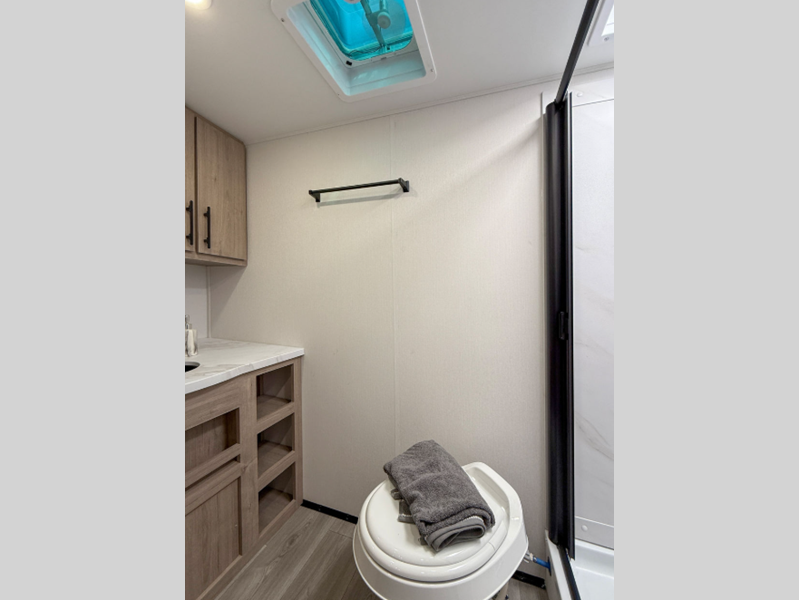

  • Residential Walk-In Shower
  • Skylight Over Shower
  • Power Vent Fan

Appliance

  • Convection Microwave
  • 12V Refrigerator

Electronics

  • Hi Definition LED TV

AIM Peace of Mind Package

  • Aluminum Step Above Entry Steps
  • Dedicated Sewer Hose Carrier
  • Residential Cabinetry
  • Universal Docking Station
  • On-Demand Tankless Water Heater
  • Black Tank Flush
  • Aluminum Rims
  • Spare Tire and Carrier
  • Front Rock Guard
  • Accessory Hitch Receiver
  • Premium Window Treatments
  • 6" Coiled Break-away Cable
  • Oversized Holding Tanks
  • Convection Microwave
  • Exterior Cooking Griddle w/Metal Pullout Drawer
  • Tuff-Ply Pass Through Flooring
  • Dual LP Tank Monitors

AIM Ultimate Power Package

  • Adjustable Power Awning w/ LED Lights
  • LED Interior Lighting
  • 30 AMP Service
  • Hi Definition LED TV
  • Detachable Power Cord
  • High Efficiency AC System
  • Motion Sensor Entry Lighting (LED)
  • Power Tongue Jack
  • Compass Connect
  • Tire Linc TPMS Prep
  • Full Width Pass-Thru Storage LED Strip Light w/Dual Power Pressure Switches
  • Wireless Pop-Up Charger w/Dual USB Ports

AIM Four Season Protection Package

  • High Capacity Furnace
  • Heated and Enclosed Underbelly with Suspended Tanks
  • Designated Heat Duct to Subfloor
  • High Density Roof Insulation with Attic Vent
  • Moisture Barrier Floor Enclosure
  • Residential (Ductless) Heating System Throughout
  • Double Insulated Roof and Front Wall
  • Heated and Enclosed Dump Valves

AIM Solar Package

  • 200W Roof Mounted Solar Panel
  • Roof Mounted Quick Connect Plugs
  • 30 AMP Charge Controller
  • 12V Refrigerator

AIM Enhancement Package (Optional)

  • 2nd Roof Mounted 200W Solar Panel & 2000W Inverter
  • Untamed Terrain 235/75R15 Tire Assembly
  • Tire Linc Tire Pressure Monitoring System
  • Factory Installed Backup Camera w/ Monitor
  • MAXAIRE Power Vent w/ Rain Sensor

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.
